Building Story
-
More Than A Block
不只是方块搭建故事

Furniture Design for Really Peckham Market
超佩克汉市集家具设计

Year: 2023 Jun.
Type: Modular Furniture
Material: Hardwood Plywood
Location: Peckham Level, London, UK

年份: 2023 六月
类型：模块化家具
材料：硬木胶合板
地点：Peckham Level, 英国伦敦

- Achievement -

成就

Was Exhibited in Interior Educators Show 2023
作品在2023年伦敦Interior Educators Show 2023展览中展出

CNC Machine Cut Boards CNC机器切割板子

Intro ︎ 简介

The design was located in Peckham Level. The area also prefers to reuse buildings in Central Rye Lane than demolition and reconstruction. So in my design, I was more focused to think of how to make changes inside. And also uses modular furniture that can be changed for different uses and move easily. Furniture will be used in the space. And considering the possibility that Peckham Level would be closed after 10 years, items of furniture will be able to be reused or recycled.

不只是块块（More Than A Block）是超佩克汉市集（Really Peckham Market）空间设计中的一部分。再利用位于中央黑麦巷（Central Rye Lane）的建筑一直是佩克汉（Peckham）地区一个特别关注点：减少建筑的拆除和重建而是将空间进行改造二次利用。考量到建筑的使用年限，在设计中思考如何在内部做出改变，于是决定使用模块化家具。家具可以因为需求改变成为不同的形态，并且很容易拆卸拼装，使家具被用于多种用途以及方便移动。为Peckham Level在十年后关闭时家具还能够被重复使用或回收。

Video ︎ 视频
Youtube | Bilibili | 小红书

Picking from Shelf & Hanging 从货架选择产品

Wood ︎ 木材

Although the space was renovated, the problem when it was once parking like ventilation and lighting is still alive. Plywood does not have harmful glues that have adverse effects on the environment. At the same time, it is renewable, recyclable and eco-friendly. Considering the site will only last for about 10 years. The things inside may need to transport or recycling. The lightness of plywood compared to solid wood, makes it the material of choice for creating designs.

考虑到空间的使用年限，家具有搬运以及回收的需求。同时因为空间曾是停车场改造，通风以及光照依旧存在一定问题。胶合板避免使用对环境造成污染的胶水；同时具有可再生性、可回收性和生态友好性。加上相较于实木的轻便，胶合板就成为打造设计的材料首选。

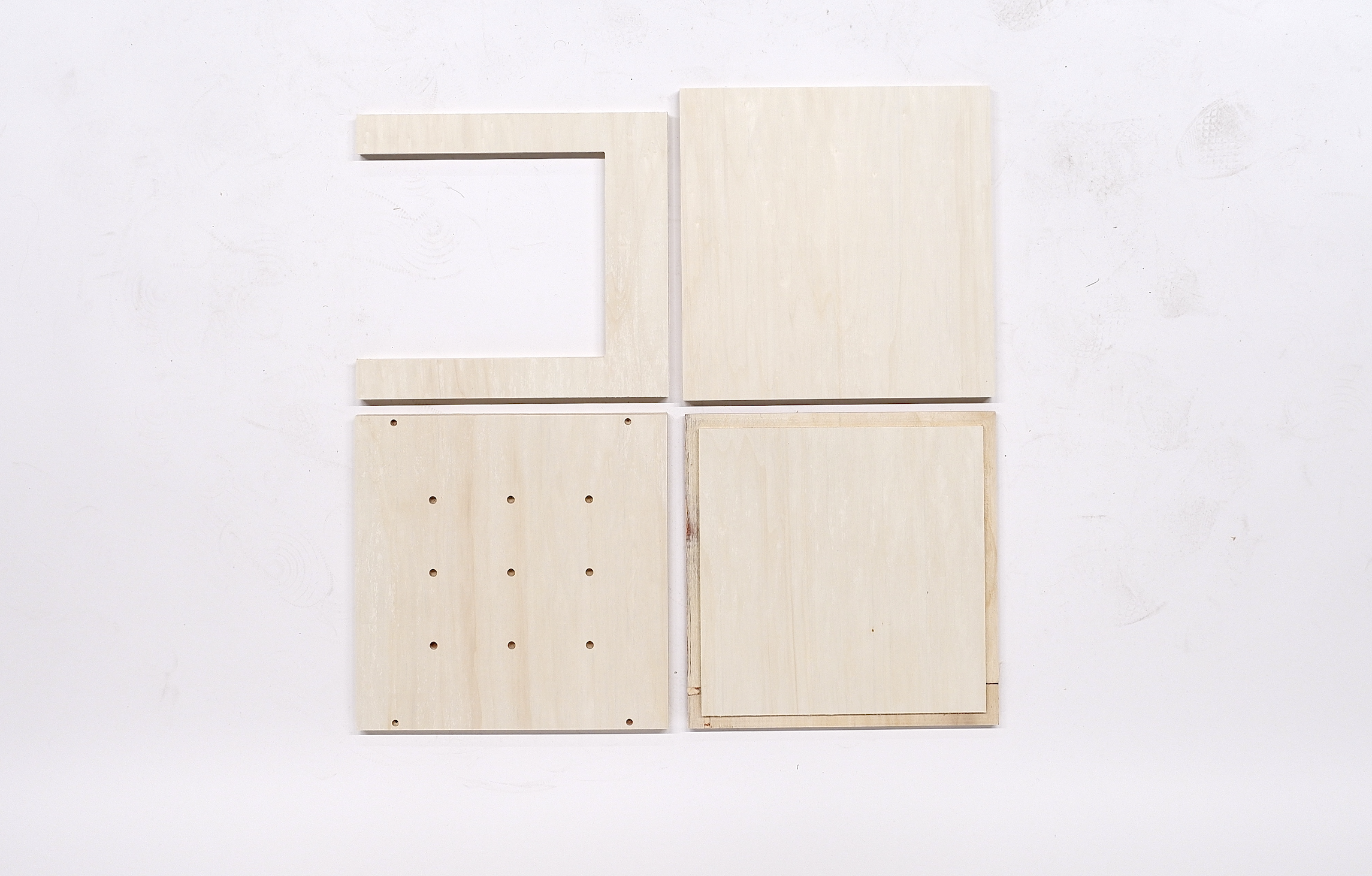

All Kinds of Boards 板子组件全类种

There are only three basic types of boards which can be combined into two forms of modules. With the addition of tops, it can be transformed into a table or stool.

基础类型的板子仅有三种，却能组合成两种不同形态的模块。加上层板则能变换成桌子或凳子。

All Kinds of Boards - Single 板子组件全类种 - 单件

Addition Boards 1: Table Board
额外板材1:桌板

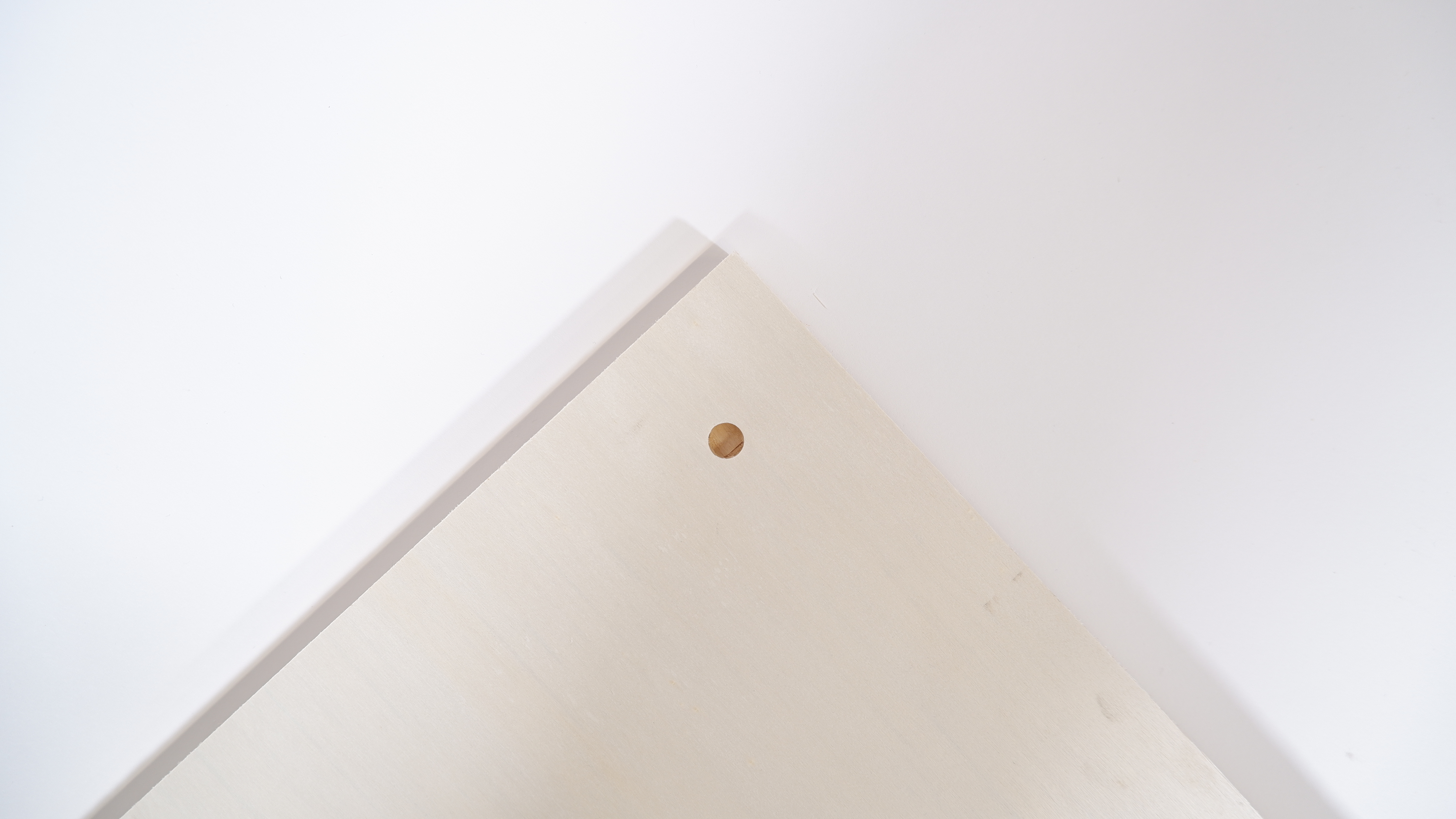

Side Holes: for desktop support installation
侧孔:用于桌面支架安装
Board: used as tops: dining table, shelve top…
长板:用作台面:餐桌、货架台面……

Table Boards 桌板

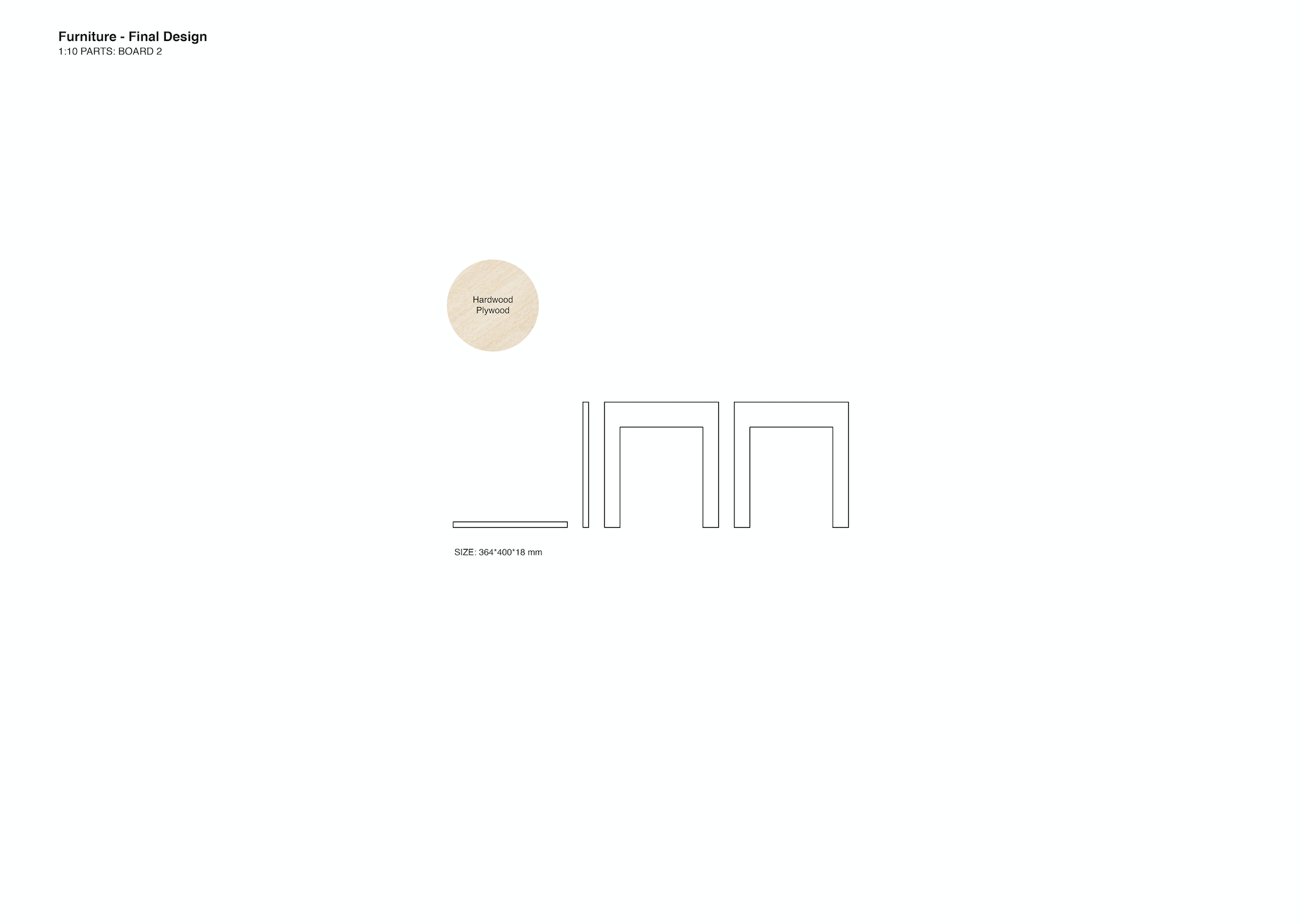

Addition Boards 2: Joint & Top
额外板材2: 连接板&顶板

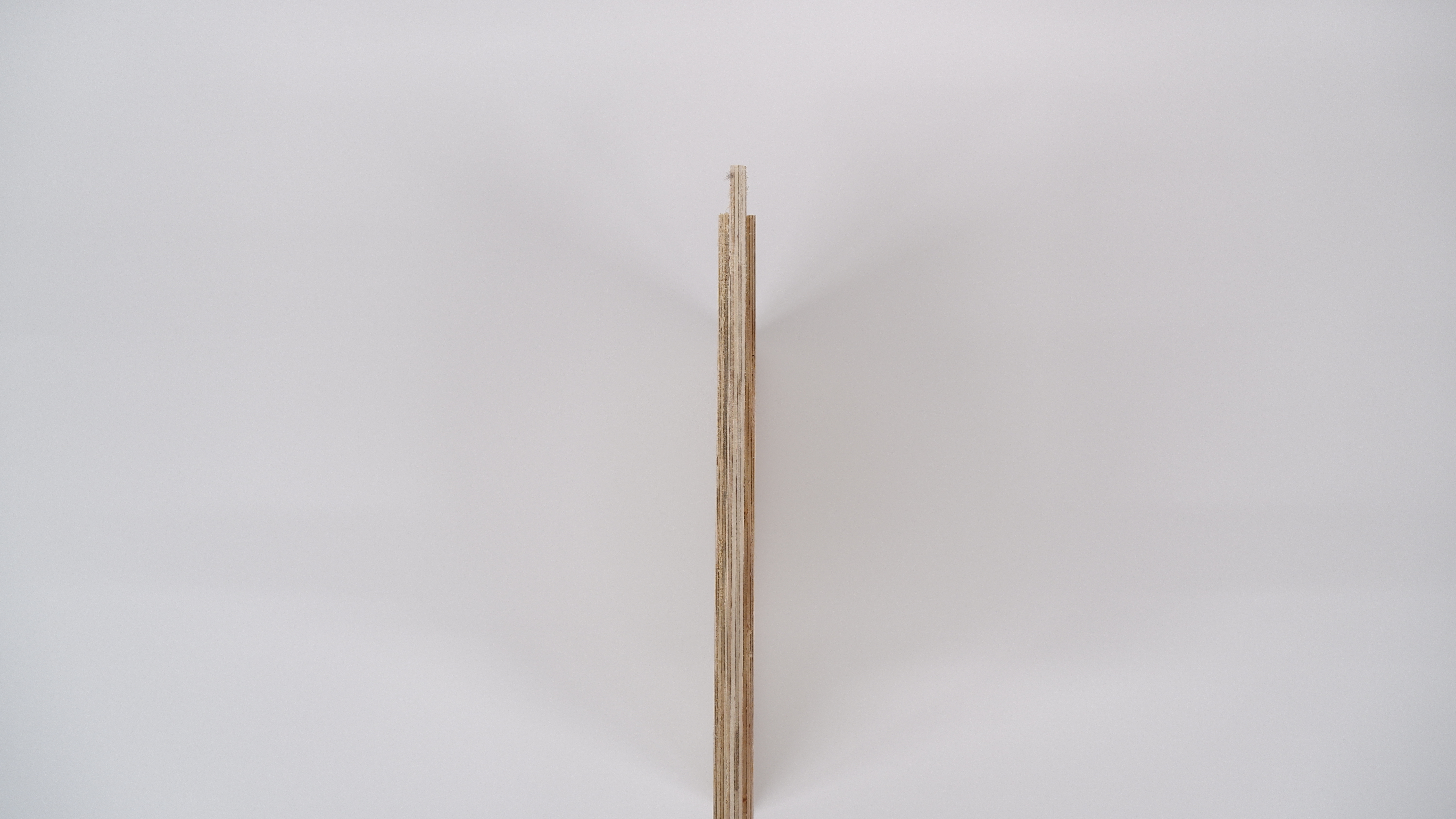

Concave: Connection
凹入位:用于块块连接
Board: used as tops: stool surface, shelve top…
板:用作顶面:凳子坐板、货架台面……

Connection/Surface Board 连接板/顶部层板

Wood Workshop Process
木材制作过程
︎
Youtube | Bilibili

Application of Wood Parts 木部件运用

Iron ︎ 铁

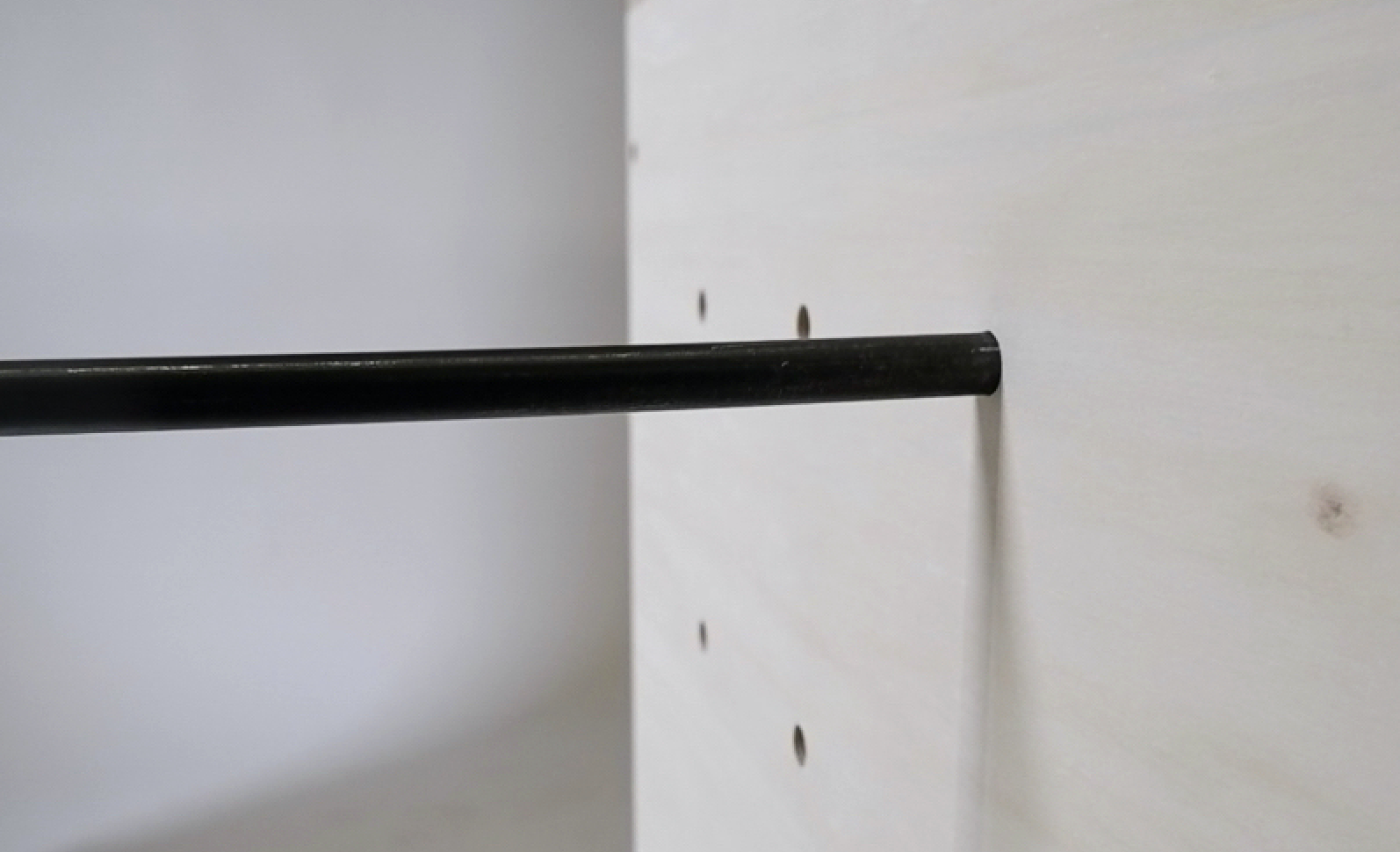

The irons can be flexibly removed and assembled into reserved holes without glue and nails‘ help.

铁杆能够灵活的拆卸以及组装在预留的安装孔洞上，且无需胶水以及钉子的连接辅助。

Iron Part Display 铁质部分展示

Iron Bar 1
铁杆 1

Table support for display
桌面支撑杠

Iron Bar - Table - Support Frame 桌子支撑架

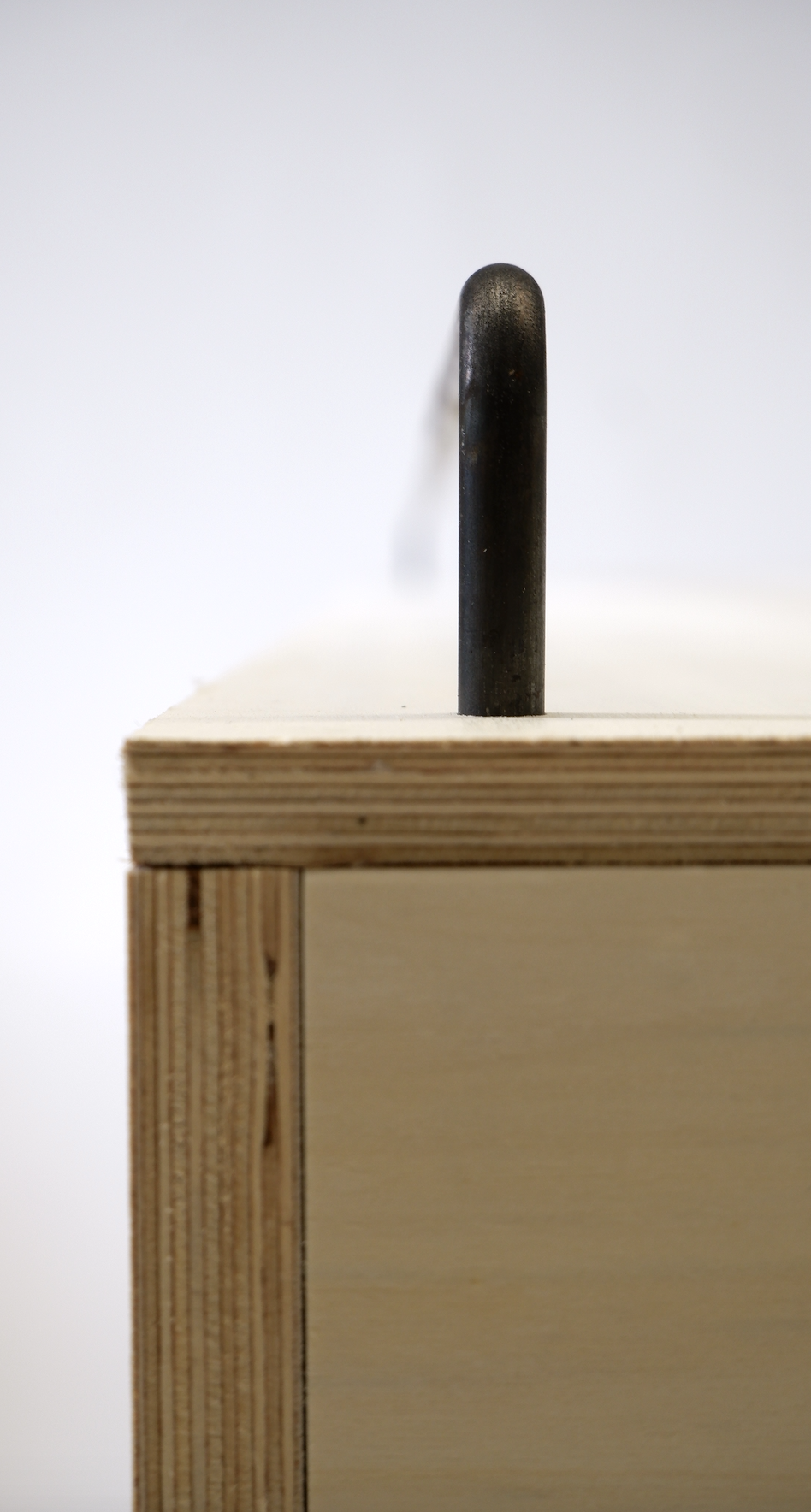

Iron Bar 2
铁杆 2

Hanging
晾挂杠

Iron Bar - Hanging 晾挂用

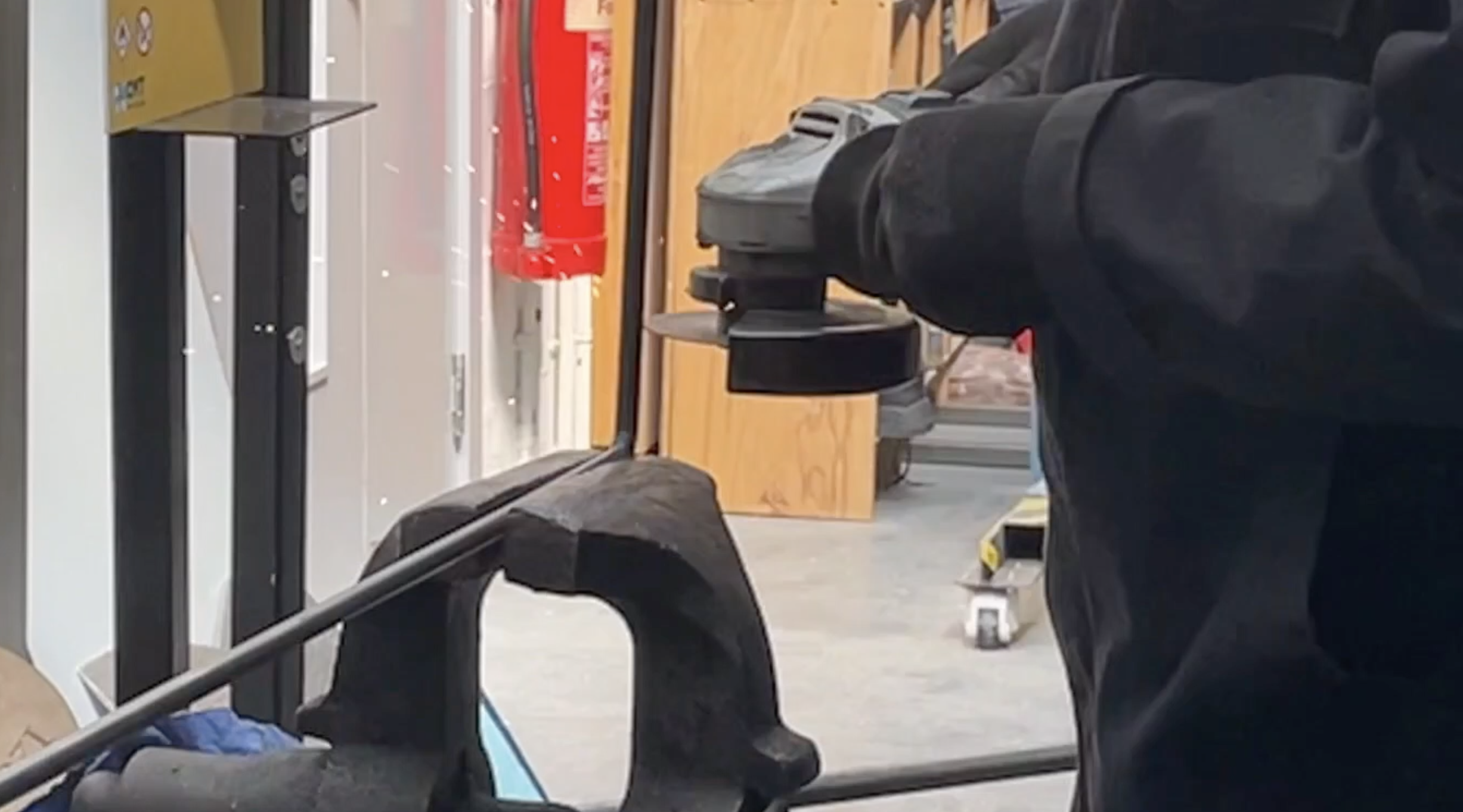

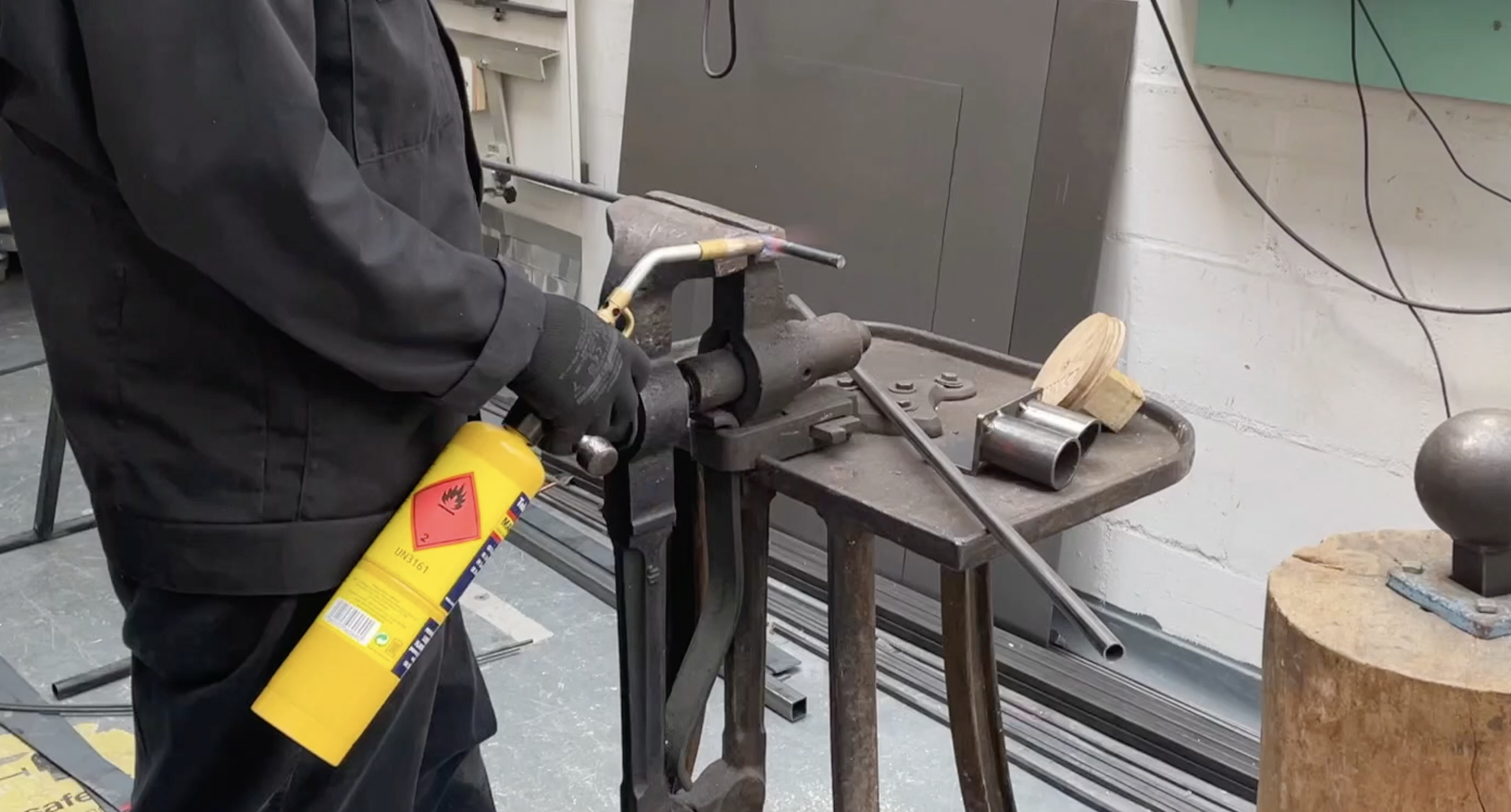

Iron Workshop Process
铁质制作过程
︎
Youtube | Bilibili

Process 过程

Blocks ︎ 块块设计

The block has two forms and can be combined freely.

块块拥有两种形态，并能自由组合。

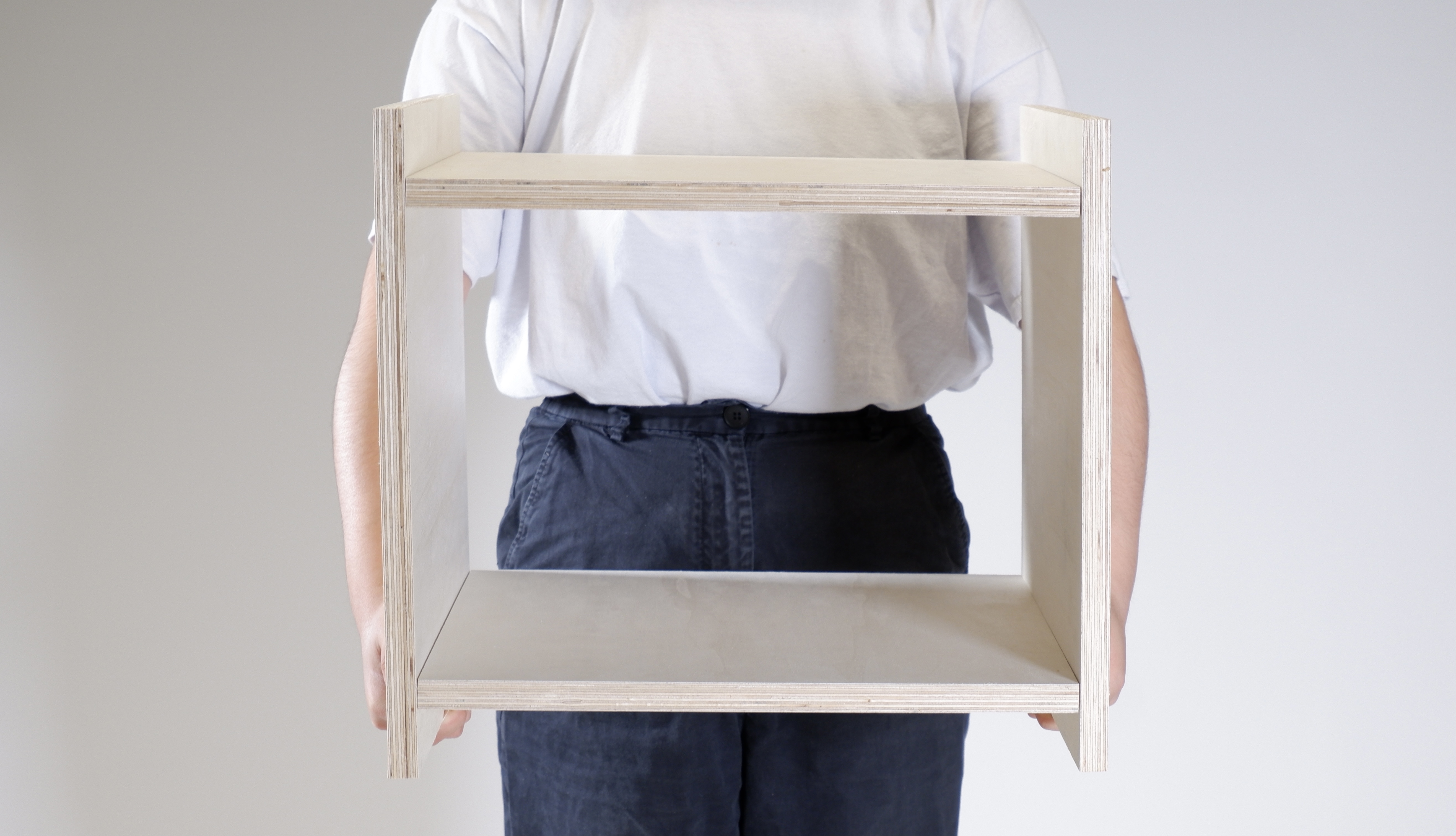

Basic Block Display 基础块块展示

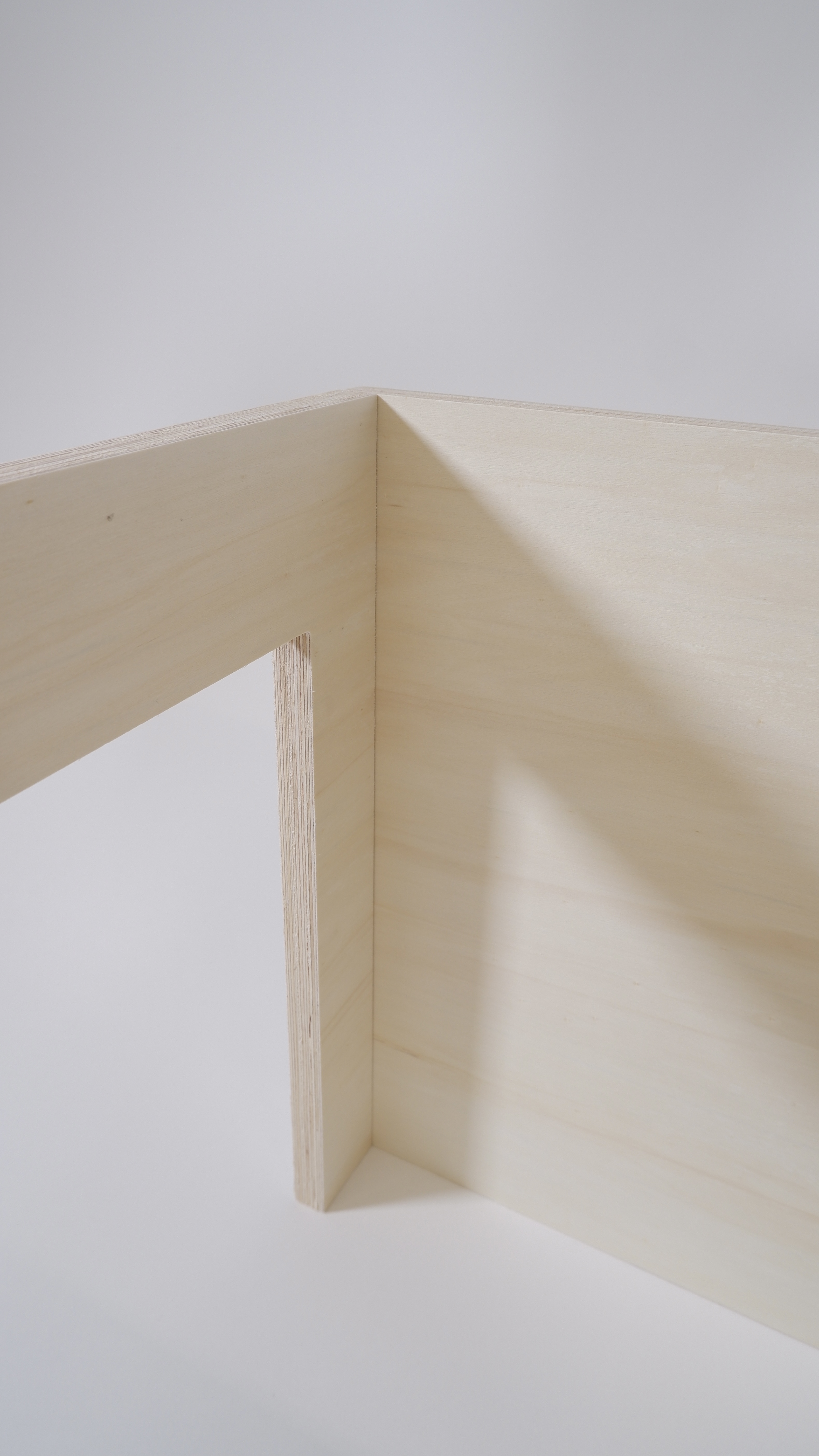

The two kinds of blocks are both built with four boards and connected by nails. This way of installation is convenient and fast which also provides convenience for manufacturing, handling and moving.

为了方便模块化运用以及制造，两个形态的块块采取钉子安装的方法连接四块板子。这种连接方式使得安装变得方便快捷，同时为搬运提供了可拆卸的便利。
